Quadro for Desktop Workstations

Quadro GP100


Quadro GP100



The NVIDIA® Quadro® GP100 is simply the world’s most powerful visual computing accelerator of complex visualization, simulation, and VR workflows.

Quadro P6000


Quadro P6000



The Nvidia® Quadro® P6000 is the world's most advanced professional graphics solution ever created, bringing unprecedented power, performance, and capabilities to professional users.


Quadro P5000


Quadro P5000



The NVIDIA® Quadro® P5000 workstation graphics card is powered by NVIDIA Pascal™ GPU technology, features 16 GB memory capacity, and gives you an expansive visual workspace with quad display outputs.

Quadro P4000


Quadro P4000



The NVIDIA® Quadro® P4000 workstation graphics card, powered by NVIDIA Pascal™ GPU technology, features 8 GB memory capacity. It also enables an expansive visual workspace with the ability to drive up to four 5K displays in a VR ready, single-slot form factor.


Quadro P2000


Quadro P2000



The NVIDIA® Quadro® P2000 workstation graphics card, powered by NVIDIA Pascal™ GPU technology, features 5 GB memory capacity. It also enables an expansive visual workspace with the ability to drive up to four 5K displays, combining outstanding performance and features in a compact form factor.

Quadro P1000


Quadro P1000



The NVIDIA® Quadro® P1000 workstation graphics card, powered by NVIDIA Pascal™ GPU technology features 4GB GDDR5 on board memory. It also has advanced display technologies in a low-profile form factor to deliver amazing graphics performance and support for four 4K displays.


Quadro P600


Quadro P600



The NVIDIA® Quadro® P600 workstation graphics card, powered by NVIDIA Pascal™ GPU technology combines 2GB GDDR5 on board memory. It also has advanced display technologies to deliver amazing performance for a range of professional workflows with support for four 4K displays in a low-profile form factor.

Quadro P400


Quadro P400



The NVIDIA® Quadro® P400 workstation graphics card, powered by NVIDIA Pascal™ GPU technology delivers great performance, with 2GB of ultra-fast memory. It also supports three 4K displays in a low-profile form factor that makes it compatible with even the most space and power-constrained chassis.


QUADRO GP100 QUICK SPECS
CUDA Parallel-Processing Cores 3584
GPU Memory 16 GB HBM2
FP64 Performance 5.2 TFLOPS
FP32 Performance 10.3 TFLOPS
FP16 Performance 20.7 TFLOPS
Max Power Consumption 235 W
Graphics Bus PCI Express 3.0 x 16
Display Connectors DP 1.4 (4), DVI-D (1), Optional Stereo (1)
Form Factor 4.4” H x 10.5” L Dual Slot

QUADRO P4000 QUICK SPECS
CUDA Parallel-Processing Cores 1792
GPU Memory 8 GB GDDR5
FP32 Performance 5.3 TFLOPS
Max Power Consumption 105 W
Graphics Bus PCI Express 3.0 x 16
Display Connectors DP 1.4 (4), Optional Stereo (1)
Form Factor 4.4” H x 9.5” L Single Slot

QUADRO P2000 QUICK SPECS
CUDA Parallel-Processing Cores 1024
GPU Memory 5 GB GDDR5
FP32 Performance 3.0 TFLOPS
Max Power Consumption 75 W
Graphics Bus PCI Express 3.0 x 16
Display Connectors DP 1.4 (4)
Form Factor 4.4” H x 7.9” L Single Slot

QUADRO P1000 QUICK SPECS
CUDA Parallel-Processing Cores 640
GPU Memory 4 GB GDDR5
FP32 Performance 1.894 TFLOPS
Max Power Consumption 47 W
Graphics Bus PCI Express 3.0 x 16
Display Connectors mDP (4)
Form Factor 2.7” H x 5.7” L Single Slot

QUADRO P600 QUICK SPECS
CUDA Parallel-Processing Cores 384
GPU Memory 2 GB GDDR5
FP32 Performance 1.195 TFLOPS
Max Power Consumption 40 W
Graphics Bus PCI Express 3.0 x 16
Display Connectors mDP (4)
Form Factor 2.7” H x 5.7” L Single Slot

QUADRO P400 QUICK SPECS
CUDA Parallel-Processing Cores 256
GPU Memory 2 GB GDDR5
FP32 Performance .641 TFLOPS
Max Power Consumption 30 W
Graphics Bus PCI Express 3.0 x 16
Display Connectors mDP (3)
Form Factor 2.7” H x 5.7” L Single Slot

QUADRO P6000 QUICK SPECS
CUDA Parallel-Processing Cores 3840
GPU Memory 24GB GDDR5X
FP32 Performance 12 TFLOPS
Max Power Consumption 250 W
Graphics Bus PCI Express 3.0 x 16
Display Connectors DP 1.4 (4), DVI-D (1), Optional Stereo (1)
Form Factor 4.4" H x 10.5" L Dual Slot

QUADRO P5000 QUICK SPECS
CUDA Parallel-Processing Cores 2560
GPU Memory 16GB GDDR5X
FP32 Performance 8.9 TFLOPS
Max Power Consumption 180W
Graphics Bus PCI Express 3.0 x 16
Display Connectors DP 1.4 (4), DVI-D (1), Optional Stereo (1)
Form Factor 4.4" H x 10.5" L Dual Slot

QUADRO M6000 24GB QUICK SPECS
CUDA Parallel-Processing Cores 3072
GPU Memory 24 GB GDDR5
Max Power Consumption 250 W
Graphics Bus PCI Express 3.0 x16
Display Connectors DP 1.2 (4), DVI-I (1), Optional Stereo (1)
Form Factor 4.4" H x 10.5" L Dual Slot

QUADRO M6000 QUICK SPECS
CUDA Parallel-Processing Cores 3072
GPU Memory 12 GB GDDR5
Max Power Consumption 250 W
Graphics Bus PCI Express 3.0 x16
Display Connectors DP 1.2 (4), DVI-I (1), Optional Stereo (1)
Form Factor 4.4" H x 10.5" L Dual Slot

QUADRO M5000 QUICK SPECS
CUDA Parallel-Processing Cores 2048
GPU Memory 8 GB GDDR5
Max Power Consumption 150 W
Graphics Bus PCI Express 3.0 x16
Display Connectors DP 1.2 (4), DVI-I (1), Optional Stereo (1)
Form Factor 4.4" H x 10.5" L Dual Slot




QUADRO M4000 QUICK SPECS
CUDA Parallel-Processing Cores 1664
GPU Memory 8 GB GDDR5
Max Power Consumption 120 W
Graphics Bus PCI Express 3.0 x16
Display Connectors DP 1.2 (4), Optional Stereo (1)
Form Factor 4.4" H x 9.5" L Single Slot




QUADRO M2000 QUICK SPECS
CUDA Parallel-Processing Cores 768
GPU Memory 4GB GDDR5
Max Power Consumption 75W
Graphics Bus PCI Express 3.0 x16
Display Connectors DP 1.2 (4)
Form Factor 4.376" H x 6.6 L Single Slot




QUADRO K2200 QUICK SPECS
CUDA Parallel-Processing Cores 640
GPU Memory 4 GB GDDR5
Max Power Consumption 60 W
Graphics Bus PCI Express 2.0 x16
Display Connectors DVI-I (1), DP 1.2 (2)
Form Factor 4.376" H x 7.97" L Single Slot




QUADRO K1200 QUICK SPECS
CUDA Parallel-Processing Cores 512
GPU Memory 4 GB GDDR5
Max Power Consumption 45 W
Graphics Bus PCI Express 2.0 x16
Display Connectors Mini DP 1.2 (4)
Form Factor 2.7" H x 6.3" L Single Slot




QUADRO K620 QUICK SPECS
CUDA Parallel-Processing Cores 384
GPU Memory 2 GB DDR3
Max Power Consumption 41 W
Graphics Bus PCI Express 2.0 x16
Display Connectors DVI-I (1), DP 1.2 (1)
Form Factor 2.713" H x 6.3" L Single Slot




QUADRO K420 QUICK SPECS
CUDA Parallel-Processing Cores 192
GPU Memory 1 GB/2 GB DDR3
Max Power Consumption 45 W
Graphics Bus PCI Express 2.0 x16
Display Connectors DVI-I (1), DP 1.2 (1)
Form Factor 2.713" H x 6.3" L Single Slot

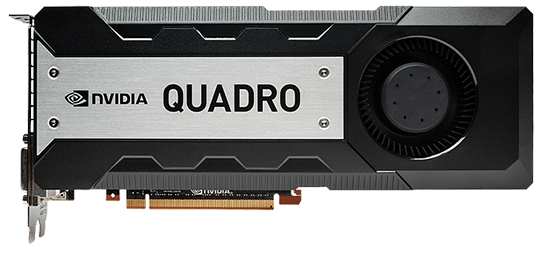

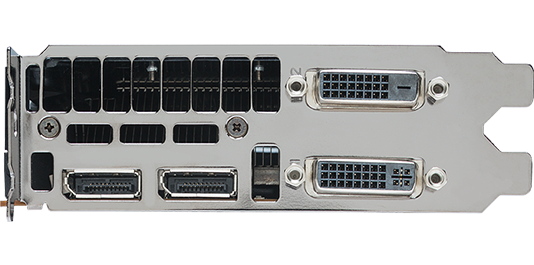

QUADRO K6000 QUICK SPECS
CUDA Parallel-Processing Cores 2880
GPU Memory 12 GB GDDR5
Max Power Consumption 225 W
Graphics Bus PCI Express 3.0 x16
Display Connectors DVI-I (1), DVI-D (1) DP 1.2 (2), Optional Stereo (1)
Form Factor 4.376" H x 10.5" L Dual Slot




QUADRO K5200 QUICK SPECS
CUDA Parallel-Processing Cores 2304
GPU Memory 8 GB GDDR5
Max Power Consumption 150 W
Graphics Bus PCI Express 3.0 x16
Display Connectors DVI-I (1), DVI-D (1) DP 1.2 (2), Optional Stereo (1)
Form Factor 4.376" H x 10.5" L Dual Slot

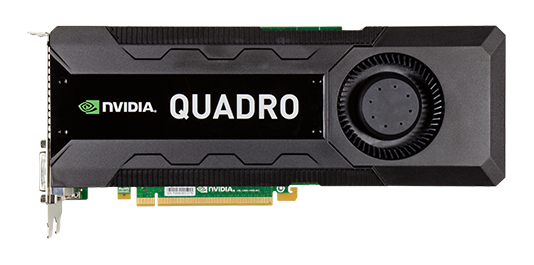

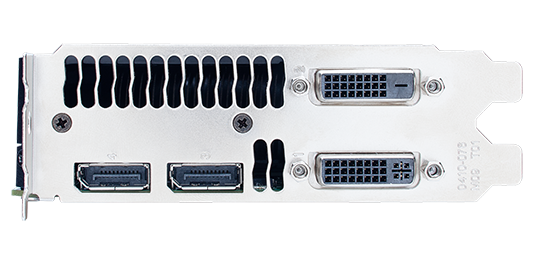

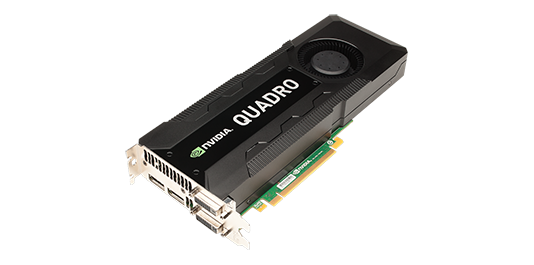

QUADRO K5000 QUICK SPECS
CUDA Parallel-Processing Cores 1536
GPU Memory 4 GB GDDR5
Max Power Consumption 122 W
Graphics Bus PCI Express 2.0 x16
Display Connectors DVI-I (1), DVI-D (1) DP 1.2 (2), Optional Stereo (1)
Form Factor 4.376" H x 10.5" L Dual Slot




QUADRO K5000 for Mac QUICK SPECS
CUDA Parallel-Processing Cores 1536
GPU Memory 4 GB GDDR5
Max Power Consumption 122 W
Graphics Bus PCI Express 2.0 x16
Display Connectors DVI-I (1), DVI-D (1) DP 1.2 (2), Optional Stereo (1)
Form Factor 4.376" H x 10.5" L Dual Slot




QUADRO K4200 QUICK SPECS
CUDA Parallel-Processing Cores 1344
GPU Memory 4 GB GDDR5
Max Power Consumption 108 W
Graphics Bus PCI Express 2.0 x16
Display Connectors DVI-I (1), DP 1.2 (2)
Form Factor 4.376" H x 9.5" L Single Slot

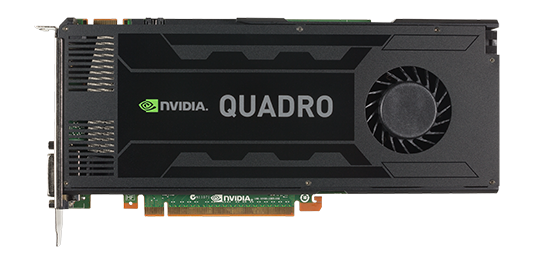

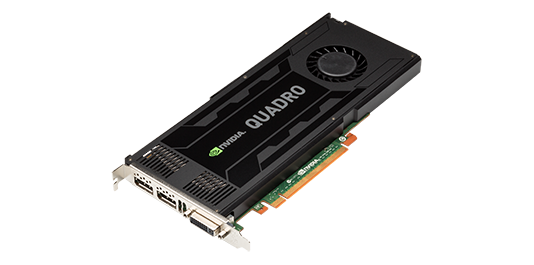

QUADRO K4000 QUICK SPECS
CUDA Parallel-Processing Cores 768
GPU Memory 3 GB GDDR5
Max Power Consumption 80 W
Graphics Bus PCI Express 2.0 x16
Display Connectors DVI-I (1), DP 1.2 (2)
Form Factor 4.376" H x 9.5" L Single Slot

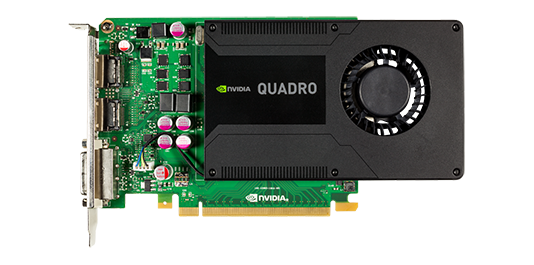

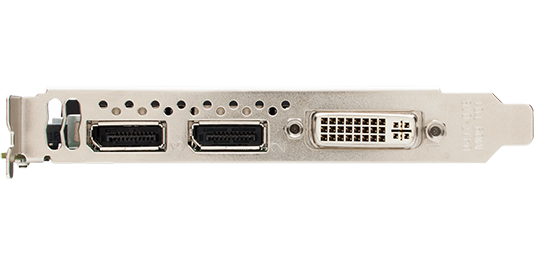

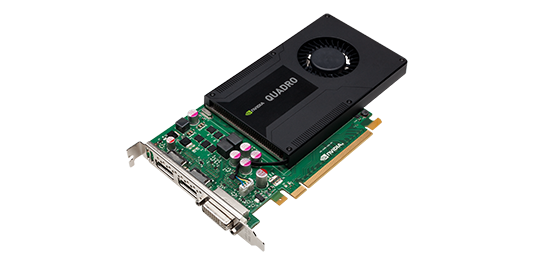

QUADRO K2000 QUICK SPECS
CUDA Parallel-Processing Cores 384
GPU Memory 2 GB GDDR5
Max Power Consumption 51 W
Graphics Bus PCI Express 2.0 x16
Display Connectors DVI-I (1), DP 1.2 (2)
Form Factor 4.376" H x 7.97" L Single Slot

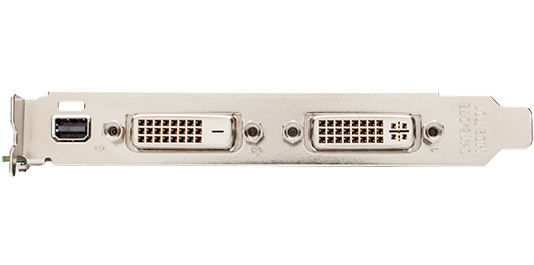

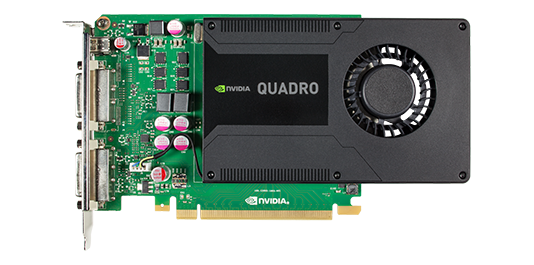

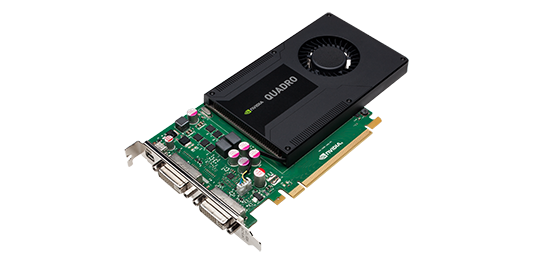

QUADRO K2000D QUICK SPECS
CUDA Parallel-Processing Cores 384
GPU Memory 2 GB GDDR5
Max Power Consumption 51 W
Graphics Bus PCI Express 2.0 x16
Display Connectors DVI-I (1), DVI-D(1), mini-DP 1.2 (1)
Form Factor 4.376" H x 7.97" L Single Slot

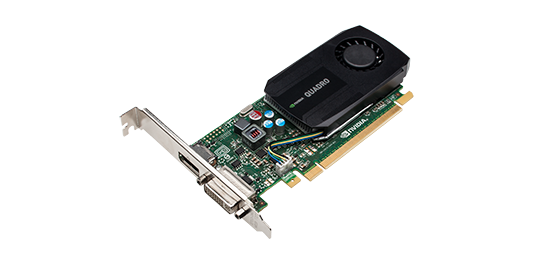

QUADRO K600 QUICK SPECS
CUDA Parallel-Processing Cores 192
GPU Memory 1 GB DDR3
Max Power Consumption 41 W
Graphics Bus PCI Express 2.0 x16
Display Connectors DVI-I (1), DP 1.2 (1)
Form Factor 2.713" H x 6.3" L Single Slot

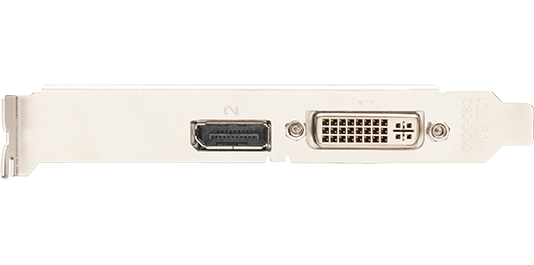

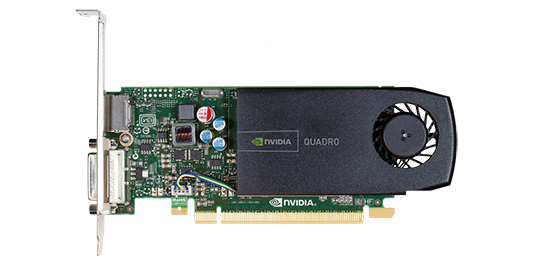

QUADRO 410 QUICK SPECS
CUDA Parallel-Processing Cores 192
GPU Memory 512 MB DDR3
Max Power Consumption 37 W
Graphics Bus PCI Express 2.0 x16
Display Connectors DVI-I (1), DP 1.2 (1)
Form Factor 2.731" H x 6.93" L, Single slot, Low Profile
