3.1 SHIELD TV Pro

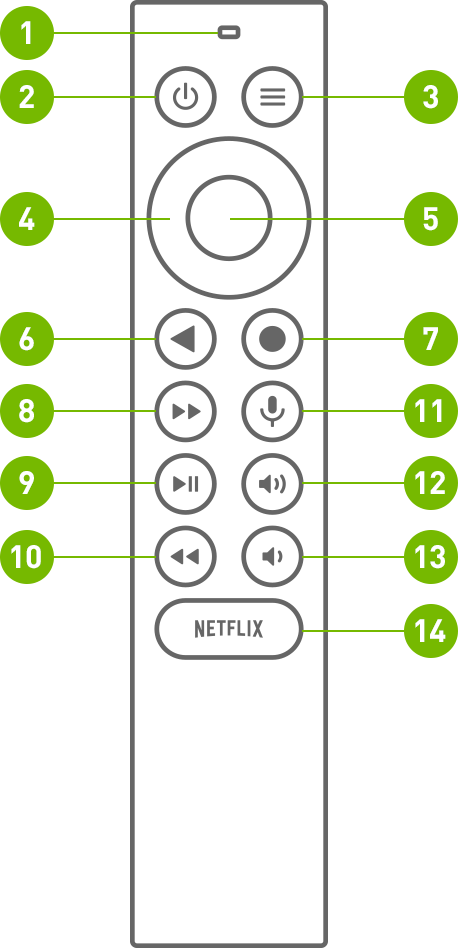

3.2 SHIELD Remote

There are 1 built-in microphone and 13 buttons on SHIELD Remote.

SHIELD Remote comes automatically paired with your SHIELD TV out of the box.  Simply press the Select button to turn it on.

Make sure the SHIELD home screen is visible on your TV.

Hold the SHIELD remote within 1 foot of your SHIELD TV.

If you are pairing a new remote, press and hold the Select button on your remote until the remote light flashes and voice prompt.If your remote has been paired to a different SHIELD, press and hold Home and Back until the remote light flashes and voice promp.

The remote should connect after a few moments. When pairing is successful, you will hear a voice prompt.

To connect a new remote to SHIELD, follow the instructions here.

The Settings button opens Settings by default but can be customized to perform your favorite activities. To change the Settings button behavior, go to Settings > Remotes & Accessories > Customize Settings button.

Your SHIELD Remote has a locator feature. When activated, your SHIELD remote will play an audible tune. This audio finder will stop playing after 10 seconds. There are several ways to activate this feature:

Remote locator button on SHIELD

• Locate the remote locator button on one end of your SHIELD (above the HDMI port) and press to start locating your SHIELD.

SHIELD TV mobile app (iOS/Android)

• Download the SHIELD TV app for your device is you have not already done so.
• Tap “more options” in the app (three dots in the upper right-hand corner).
• Tap “Find my remote”

Google Home

• Important note: Your Google Home must be on the same network as your SHIELD and use the same Google Account you have signed into your SHIELD with.
• On a Google Home device, say “OK Google, start SHIELD remote locator”

Amazon Echo devices

• Important note: You must have already paired your Echo device to SHIELD using the Amazon Alexa skill.
• On your Echo device, say “Alexa, Ask SHIELD to find my remote”

Note: The remote locator will only work if your SHIELD remote is connected to your SHIELD. Common reasons the locator feature may not work include:

• Power is lost to your SHIELD (check power cable connection).
• Critically low/empty battery levels on your remote.
• Pairing between remote and SHIELD are lost.

Customize Remote Name

• Your SHIELD Remote can be given a custom name. To rename your SHIELD Remote, go to Remotes & Accessories > SHIELD Accessories > Active controller > Accessory name.

Battery Replacement

Your SHIELD Remote uses (2) AAA batteries to power the remote. To replace the batteries, follow these instructions.

1. Slide cover off the back of the SHIELD remote.
   • Locate the downward arrow on the back of the SHIELD remote.
   • With your thumb, press in and down to slide the back cover off.
2. Replace the batteries with the "+" terminal facing down.
3. Slide the battery tray back into your SHIELD Remote until a soft click is heard.

Your SHIELD can automatically download and install system upgrades. To enable this feature, go to Settings > Device Preferences > About > System upgrade and turn on “Auto-upgrade”. You can also specify a time for SHIELD to apply the upgrade.

System upgrades are pushed to your SHIELD TV directly from NVIDIA.  A notification banner will appear at the top of the SHIELD TV home screen when an upgrade is available. Select “Details” on this notification and your SHIELD TV will automatically download and apply the update. You can also manually check for updates by going to Settings > Device Preferences > About > System upgrade.

To turn on Talkback function:

1. Press and hold BACK+DOWN for 3 seconds until voice prompt.
2. Press and hold BACK+DOWN for 3 seconds again to turn on Talkback.

To turn off Talkback function:

1. Press and hold BACK+DOWN for 3 seconds again to turn off Talkback.

All installed apps and games can be accessed by selecting the "Apps" icon on the home screen, or by long pressing "Home" on your SHIELD Remote

8.1 Using Google Assistant

With Google Assistant on SHIELD you can find Movies and TV Shows, launch apps and games, and control your smart home.  It's everything you love about Google Home, but enhanced for your living room.

8.2 Availability

Google Assistant for SHIELD is currently available for the following languages

• US English
• UK English
• Canadian English
• Australian English
• French
• German
• Spanish
• Italian

Additional support for other countries is planned but not yet available.

8.3 Using Your Google Assistant

On your SHIELD remote:

1. From any app or the home screen press and release the Voice search button
2. Hold your SHIELD Remote in front of you and say your question.  Your assistant results appear as soon as you finish speaking.

8.4 Displaying More Results

In most cases, you can get more results by pressing UP on the SHIELD Remote.  Search results from other apps are displayed in this menu.

8.5 Hands Free “ok Google”

If you own a SHIELD Controller 2017, you can say "OK Google" or "Hey Google" to begin your request.

To enable this feature, go to Settings > Device Preferences > Google Assistant > Enable “OK Google” Detection

8.6 What You Do With Google Assistant on SHIELD

Check out the examples below to learn about some of the things you can do with Google Assistant on SHIELD TV.

8.7 Turn your TV and SHIELD Off (requires HDMI CEC control enabled)

• "Turn off the TV"

8.8 Search for Movies or TV Shows

1. Search by title
   • "Show me Batman movies"
   • "I want to watch Arrested Development"
2. Search by director or actor
   • "Show me movies directed by Steven Spielberg"
   • "Show me TV shows with Chris Pratt"
3. Use any combination of search terms
   • "Show me action movies with Tom Cruise"
   • "Show me comedies with The Rock"

8.9 Instantly play your favorite shows

Some apps like Netflix, Hulu, YouTube, and HBO Now can start playing shows automatically.

• "Watch Stranger Things on Netflix"
• "Play cat videos on YouTube"

8.10 Launch your favorite app

• "Open NVIDIA Games"
• "Launch Netflix"

8.11 Control your smart home

By linking your smart home devices to Google Assistant, you can control your lights and switches using your voice.

• "Turn on the living room lights"
• "Dim the lights to 50%"

8.12 Plan your day

• "What's my first meeting today?"
• "How long is my commute this morning"

8.13 Show photos from your Google Photos account

• "Show me my pictures from 2010"
• "Show me my pictures of cars"

8.14 And More

Follow the link to see examples of what you can do with your Google Assistant.

8.15 What Apps Show Up in Search Results

You may also see search results from apps you've installed on your Android TV.  These results will show up in a separate row.  Some search results will be available in a few different apps.  When you select the content, you'll be able to choose the app you'd like to use.  You may customize results by going to Settings > Device Preferences > Google Assistant > Searchable apps and enable the apps you want to see results from.

8.16 Performing a Voice Search Within App

You may also use voice search within many apps.  If you initiate a voice search within an app, you will get search results only from that app.

8.17 Additional Help and Information

For help with setting up Google Assistant on SHIELD TV visit this website.

9.1 Sleep Now

SHIELD TV will automatically go to sleep after the time period:

• On the SHIELD TV Home screen, select Settings > Device Preferences > Screen saver.
• Select When to start.
• Select one of the options.

9.2 Restart

To restart:

• On the SHIELD TV settings, select "Restart"
• If this is unsuccessful, you can also unplug the power cord, wait 10 seconds, and then plug the power cord back in.

You can set up a screensaver for your SHIELD TV that displays photos and colorful designs.  Daydream uses a collection of scenic photos.

10.1 Choose Your Screensaver

• On the SHIELD TV Home screen, select Settings > Device Preferences > Screen saver.
• Select Screen saver again.
• Choose from the available options.

10.2 Set Wait Time for Screen Saver

You can choose how long it takes for your screensaver to start when not using your SHIELD TV:

• On the SHIELD TV Home screen, select Settings > Device Preferences > Screen saver.
• Select Put device to sleep.
• Select one of the options.

You can use Bluetooth accessories, such as a wireless keyboard, mouse or game controller with your SHIELD TV.

To add a Bluetooth accessory:

• On the SHIELD TV screen, select Settings.
• Under Remote & accessories, select Add accessory. You SHIELD TV will search for Bluetooth accessories within range.
• Put your accessory in connecting mode.
• You'll see your accessory listed on the TV screen.  Select your accessory.
• Your SHIELD TV will connect with your accessory.

Trouble Adding Bluetooth Accessory

Try these troubleshooting in this website steps if your Bluetooth accessory won't connect.

Your SHIELD TV supports 4K Ultra HD (3840 x 2160p) resolution content with HDR10 or Dolby Vision, from many apps.

To ensure that your SHIELD TV is optimized for 4K video output, keep your device updated with the latest system software.

Watching 4K content from SHIELD TV requires a 4K display with HDMI 2.0 and HDCP 2.2 support.  Make sure SHIELD TV is connected to an HDMI input that supports HDCP 2.2.  Consult your 4K display's user guide to find the correct HDMI port to plug SHIELD TV for watching 4K content.

Consider using the HDMI-UHD port for 4K support.  Some TVs by default have UHD input disabled in TV settings, so please make sure that UHD is enabled in the settings for your TV for this input.

Your SHIELD will automatically set to a HDR10 capable display mode when detected.

If you own a Dolby Vision compatible display at 4K resolutions with 60Hz refresh rate, enable Dolby Vision by selecting Settings > Device Preferences > Display & Sound > Dolby Vision

If you are unable to enable “Dolby Vision”, your HDMI cables may be the issue. Try replacing them with higher quality cables and try again.

If your TV supports 4K Dolby Vision at lower refresh rates, you can change your display mode at Settings > Device Preferences > Display & Sound > Advanced display settings > Custom display mode and select any mode labelled “Dolby Vision Ready”.

Some HDR TVs do not have HDR output enabled by default for HDMI.  To enable HDR output from SHIELD, refer to your TV owner's manual.  Here are the settings for some of the common TVs:

• Samsung HDR TVs: Menu > Picture > Picture Options > HDMI UHD Color > On > Restart
• LG HDR TVs: Home > HDMI > Settings > Advanced > Picture > HDMI ULTRA DEEP COLOR > On > Restart
• Sony HDR TVs: Home > Settings > External inputs > HDMI signal format > HDMI [select the SHIELD input] > Enhanced mode (TV will reboot)

To watch Netflix shows in 4K or HDR, you may need to upgrade your Netflix service account to the "4 screen plan."  Consult Netflix's article on their latest requirements to stream 4K or HDR content. http://help.netflix.com/en/node/42384

SHIELD TV supports Dolby Digital (AC3), Dolby Digital Plus (E-AC3), Dolby ATMOS, Dolby TrueHD, DTS:X, and DTS Core Audio Streams over HDMI.  Dolby audio can be decoded/converted to the best available format for your home theater.  DTS audio will not be converted and will be passed directly to the HDMI output.

In order to experience surround sound, use an AV receiver or TV capable of decoding these audio streams.

(I) Recommended setup: SHIELD > AVR > TV

• Connect your SHIELD TV to a receiver with an HDMI cable.
• Plug another HDMI cable from your receiver's HDMI OUT port to the TV.

(II)  Soundbar or legacy AVR: SHIELD > TV > AVR

• Connect your SHIELD TV to a TV with an HDMI cable.
• Connect TV to the receiver using Optical SPDIF or HDMI Audio Return Channel (HDMI-ARC)
• Under Settings > Device Preferences > Display & Sound > Advanced sound settings > Available formats select Manual and disable all Dolby formats except AC3.

Enable SHIELD to Turn on and Off Your TV/AVR

SHIELD can control the power of your TV/AVR using HDMI-CEC. Go to Display & Sound > Power control to customize how your SHIELD controls your TV/AVR.

If your TV/AVR does not support HDMI-CEC, you can configure your SHIELD remote to send IR commands to your devices from this menu.

Use of an AV Receiver with HDMI for video may result in audio lagging behind video.  First try using the receiver AV sync settings to calibrate.  If this does not work, use the AV sync slider utility in Settings > Device Preferences > Display & sound > Advanced settings > Audio video sync to calibrate for audio delay.  The AV sync slider allows you to advance audio by 1 second (in small increments of 10ms) to synchronize the audio and video.

Note that this tool is effective only when SHIELD is connected to your AV Receiver over HDMI (i.e. audio/video over HDMI); it is not meant to be used when a headset is plugged into SHIELD Controller/SHIELD Remote or Bluetooth audio device.

If video lags behind audio (i.e. audio is ahead of video) then use your AV receiver’s settings to delay audio.

17.1 Adjust for Overscan

For TVs that don't provide their own overscan settings, use this setting to adjust the picture size to fit the screen.

Go to Settings > Device Preferences > Display & Sound > Advanced Settings > Adjust for overscan to resize the picture on your TV or display.  Use the UP and DOWN d-pad buttons on your remote to maximize the picture on your TV.  Make sure the green triangles are completely visible to avoid overscan.

Details about your SHIELD TV can be found at Settings > Device Preferences > About.

From this menu, you can

• Manually check for system upgrades
• Change your SHIELD’s name
• Legal information
• Find additional system information, including
  • Serial number
  • IP address
  • Network MAC address

20.1 Reset to Factory Settings

20.2 Reset Through Settings

To reset your SHIELD TV to factory settings, follow these steps:

• From the Home screen, select Settings > Device Preferences > Reset.
• Select Reset.
• Then select Erase everything to confirm and reset your device.

Additional USB storage can be connected to your SHIELD. Connected storage is automatically connected as “removable storage” and SHIELD can read and write directly to the storage device. Apps and app data cannot be installed on “removable storage”. To increase storage for installing apps, connected storage must be formatted as “device storage”.

To format your storage device for “device storage”, select Settings > Device Preferences > Storage > [Storage device] > Set up as device storage. This will format and encrypt your storage device.

SHIELD TV is compatible with the FAT32, exFAT, NTFS, and HFS+ file systems.

21.1 How to Add Network Storage

Your SHIELD TV device can add Network Addressable Storage (NAS) devices. This can be useful if you have a large amount of personal media shared on a network you would like to access on your SHIELD TV (e.g., PLEX Media Server)

To add a NAS:

• Select Settings > Device Preferences > Storage > Network storage.
• Any network discoverable drives will be located under "Available Network Storage."
• If your NAS is hidden or does not broadcast, you can select "manually add a network storage."

To change your display mode, go to Settings > Device Preferences > Display & Sound > Resolution to select form a list of popular display modes.

Dolby Vision compatible modes are not enabled by default and can be selected here.

If you would like to select a custom display mode, go to Settings > Device Preferences > Display & Sound > Advanced display settings > Custom display mode to see a list of all modes available for your display.

Important Note:  This is an experimental feature (beta).  Not all apps support this feature and some TV’s may have difficulty setting to some refresh rates. PLEX and KODI already support automatic refresh rate matching.

If you are streaming content at a frame rate that does not match your display’s refresh rate, SHIELD will automatically convert the content to match your display.

SHIELD also includes an experimental feature to match your display refresh rate with the content frame rate.  To use this feature:

• Start playing a video on SHIELD.
• Press the “Settings” button to bring out the settings menu and select “Match frame rate (beta)” from the Quest Settings.

Note: Once playback is stopped, the display’s refresh rate will return to its original setting.  You will need to manually activate this setting every time you want to match frame rates.

Optional:  Customize your remote Setting button to match frame rate.  Go to Settings > Remotes & Accessories > Customize Settings button and select “Match frame rate (beta)”.

For more information or troubleshooting for this feature, see our Knowledge Base article on this topic in this website.

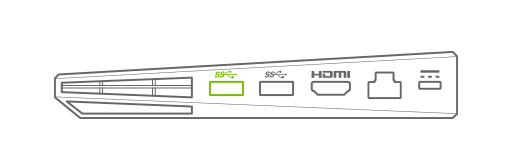

From a PC, you can access internal and attached storage on your SHIELD TV.

Using a USB type-A to type-A cable (not included in the box) you can connect your PC directly to your SHIELD TV:

• Enable Settings  > Device Preferences> Storage > Transfer files to a computer using USB
• Once you connect your PC to SHIELD TV, you will see your SHIELD TV available under your file manager under "SHIELD Android TV."

24.1 Over Local Network

Your SHIELD TV can become discoverable as a network addressable device.

• Enable Settings > Device Preferences > Storage > Transfer files over local network
• The following page will have the information needed to log into your SHIELD TV to transfer files in and out of your storage.

Log into the same Google account on your Google Home as you do with your SHIELD TV to control your TV hands-free.

Basic Commands
“Turn on [SHIELD]”
“Turn off [SHIELD]”
“Open [name of app] on [SHIELD]”

Playback Features
“Play [name of Netflix, HBO NOW, CBS, Viki, or Starz show] on [SHIELD]”
“Play [name of song] on [name of app] on [SHIELD]”
“Watch [name of channel] on YouTube TV on [SHIELD]”
“Play [video title] on YouTube on [SHIELD]”
“Pause on [SHIELD]”
“Play on [SHIELD]”

Photos and Smart Home
“Show me my pictures from Egypt on [SHIELD]”
“Show me my pictures from last weekend on [SHIELD]”
“Dim the lights”
“Set the temperature to 72 degrees”

Pair your SHIELD with an Amazon Echo device to launch apps, turn your SHIELD on or off, or even control playback.

Locate the NVIDIA SHIELD TV skill on the Alexa app on your mobile device and follow the instructions.

Voice commands that currently work, with more on the way:

Getting Started
“Alexa, turn on SHIELD.”
“Alexa, turn off SHIELD.”

Opening Entertainment apps
“Alexa, open Prime Video (on SHIELD).”
“Alexa, open HBO NOW (on SHIELD).”

Using Media Controls
“Alexa, pause (on SHIELD).”
“Alexa, play (on SHIELD).”
“Alexa, next (on SHIELD).”
“Alexa, previous (on SHIELD).”
“Alexa, fast-forward ten minutes (on SHIELD).”

Navigating SHIELD
“Alexa, go to settings (on SHIELD).”
“Alexa, go home (on SHIELD).”
“Alexa, go to control settings (on SHIELD).”

The NVIDIA GeForce NOW for SHIELD TV app makes it easy to find all the GeForce NOW games you can play on your SHIELD TV.

The NVIDIA SHIELD TV app lets you control your SHIELD TV, launch apps, and log in to your favorite GeForce NOW games on SHIELD even faster.

The app gives you instant access to a virtual mouse and keyboard, which makes it simple for you to enter your username and password into game services.

GeForce NOW Controls

• Virtual mouse touchpad
• Virtual keyboard (US English)

SHIELD TV Remote Controls

• App launcher:  Tap on the app banner to immediately launch app on your SHIELD TV
• D-pad navigation (up/down/right/left) and Select
• Android buttons (Back, Start, Home)
• Media playback (Play, Pause, Fast Forward, Rewind)
• Volume control

1. Install the SHIELD TV app on your Android or iOS device
2. Connect your phone to the same network as your SHIELD TV
3. Launch the SHIELD TV app and select your SHIELD under discovered devics
4. Pair your device with SHIELD TV by entering the 6-digit code displayed on your TV

Before using this troubleshooting guide, make sure that your SHIELD is updated with the latest system update, available automatically if your SHIELD is connected to the Internet.

If you are unable to resolve the issues you are having with the troubleshooting steps in this guide, you may find a resolution in the GeForce Experience Forums > SHIELD section.

Useful tips and tricks can also be found on our SHIELD FAQ and our SHIELD support page.

If you are still unable to resolve the issues you are having, please contact NVIDIA support.

Important Safety Information

NVIDIA products are designed to operate safely when installed and used according to the product instructions and general safety practices. The guidelines included in this document explain the potential risks associated with equipment operation and provide important safety practices designed to minimize these risks. By carefully following the information contained in this document you can protect yourself from hazards and create a safer environment.

This product is designed and tested to meet IEC-60950-1, the Standard for Safety of Information Technology Equipment. This also covers the national implementation of IEC-60950-1 based safety standards around the world e.g. UL-60950-1. These standards reduce the risk of injury from the following hazards:

• Electric shock: Hazardous voltage levels contained in parts of the product
• Fire: Overload, temperature, material flammability
• Mechanical: Sharp edges, moving parts, instability
• Energy: Circuits with high energy levels (240 volt-amps) or potential as burn hazards
• Heath: Accessible parts of the product at high temperatures
• Chemical: Chemical fumes and vapors
• Radiation: Noise, ionizing, laser, ultrasonic waves

Retain and follow all product safety and operating instructions. Always refer to the documentation supplied with your equipment. Observe all warnings on the product and in the operating instructions.

WARNING: FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS COULD RESULT IN FIRE, ELECTRIC SHOCK OR OTHER INJURY OR DAMAGE.

ELECTRICAL EQUIPMENT CAN BE HAZARDOUS IF MISUSED. OPERATION OF THIS PRODUCT, OR SIMILAR PRODUCTS, MUST ALWAYS BE SUPERVISED BY AN ADULT. DO NOT ALLOW CHILDREN ACCESS TO THE INTERIOR OF ANY ELECTRICAL PRODUCT AND DO NOT PERMIT THEM TO HANDLE ANY CABLES.

To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the safety labels included on the equipment.

Symbols on Equipment

This symbol in conjunction with any of the following symbols indicates the presence of a potential hazard. The potential for injury exists if warnings are not observed. Consult your documentation for specific details.

This symbol indicates the presence of hazardous energy circuits or electric shock hazards. Refer all servicing to qualified personnel.

WARNING: To reduce the risk of injury from electric shock hazards, do not open this enclosure. Refer all maintenance, upgrades, and servicing to qualified personnel.

This symbol indicates the presence of electric shock hazards. The area contains no user or field serviceable parts. Do not open for any reason.

General Precautions

To reduce the risk of electric shock, personal injury, or damage to the equipment, observe the following precautions:

• Follow all cautions and instructions marked on the equipment.
• Do not bend, drop, crush, puncture, incinerate, or push objects into openings of the device.
• Do not connect or disconnect any cables or perform maintenance or reconfiguration of this product during an electrical storm.
• Do not use the SHIELD TV in rain or near sink, or other wet locations. Take care not to spill any food or liquid into the device. In case the SHIELD device gets wet, unplug all cables and turn off before cleaning, and allow it to dry thoroughly before turning it on again.
• Do not expose the SHIELD TV to any gas which is not normally contained in the atmosphere. It may cause mis-operation or defects.
• Never turn on any equipment when there is evidence of fire, water, or structural damage.
• Place the product away from radiators, heat registers, stoves, amplifiers, or other appliances that produce heat.
• Never force a connector into a port. Check for obstructions on the port. If the connector and port don't join with reasonable ease, they probably don't match. Make sure that the connector matches the port and that you have positioned the connector correctly in relation to the port.
• Operate the AC adapter in a ventilated area.
• When you are using the NVIDIA SHIELD TV, it is normal for the system and/or AC power adapter to get warm.
• Do not use conductive tools that could bridge live parts.
• Do not make mechanical or electrical modifications to the equipment.
• Never attempt to reconnect the SHIELD TV yourself. This device does not contain any user-serviceable parts. Do not attempt to open, disassemble, or remove the battery. You run the risk of electric shock.
• Operate the SHIELD TV in a place where the temperature is always between 5 and 30°C (41 to 86°F).
• Store the SHIELD TV in a place where the temperature is always between 0 and 35°C (32 to 95°F) with relative humidity of 70% or lower. When taking the device from a low temperature condition, allow the device to reach room temperature before turning the power on.
• Use this product only with approved equipment and/or accessories
• If the product sustains damage requiring service, disconnect the product from the AC electrical outlet and refer servicing to an NVIDIA authorized service provider.

Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. (California law requires this warning be provided to California customers.

A lire avant toute utilisation d'un jeu vidéo par vous-même ou par votre enfant.

I. - Précautions à prendre dans tous les cas pour l'utilisation d'un jeu vidéo.

Evitez de jouer si vous êtes fatigué ou si vous manquez de sommeil.

Assurez-vous que vous jouez dans une pièce bien éclairée en modérant la luminosité de votre écran.

Lorsque vous utilisez un jeu vidéo susceptible d'être connecté à un écran, jouez à bonne distance de cet écran de télévision et aussi loin que le permet le cordon de raccordement.

En cours d'utilisation, faites des pauses de dix à quinze minutes toutes les heures.

II. - Avertissement sur l'épilepsie.

Certaines personnes sont susceptibles de faire des crises d'épilepsie comportant, le cas échéant, des pertes de conscience à la vue, notamment, de certains types de stimulations lumineuses fortes: succession rapide d'images ou répétition de figures géométriques simples, d'éclairs ou d'explosions. Ces personnes s'exposent à des crises lorsqu'elles jouent à certains jeux vidéo comportant de telles stimulations, alors même qu'elles n'ont pas d'antécédent médical ou n'ont jamais été sujettes elles-mêmes à des crises d'épilepsie.

Si vous-même ou un membre de votre famille avez déjà présenté des symptômes liés à l'épilepsie (crise ou perte de conscience) en présence de stimulations lumineuses, consultez votre médecin avant toute utilisation.

Les parents se doivent également d'être particulièrement attentifs à leurs enfants lorsqu'ils jouent avec des jeux vidéo. Si vous-même ou votre enfant présentez un des symptômes suivants : vertige, trouble de la vision, contraction des yeux ou des muscles, trouble de l'orientation, mouvement involontaire ou convulsion, perte momentanée de conscience, il faut cesser immédiatement de jouer et consulter un médecin.

Power Rating

19 V DC, 2.1 A

The SHIELD Android TV Game Console is compliant with the regulations listed in this section.

United States

The SHIELD Controller 2017 is compliant with the regulations listed in this section.

United States

The SHIELD Remote is compliant with the regulations listed in this section.

United States

The information provided in this document is believed to be accurate and reliable as of the date provided. However, NVIDIA Corporation (“NVIDIA”) does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information. NVIDIA shall have no liability for the consequences or use of such information or for any infringement of patents or other rights of third parties that may result from its use. This publication supersedes and replaces all other specifications for the product that may have been previously supplied.

NVIDIA reserves the right to make corrections, modifications, enhancements, improvements, and other changes to this specification, at any time and/or to discontinue any product or service without notice. Customer should obtain the latest relevant specification before placing orders and should verify that such information is current and complete.

NVIDIA products are sold subject to the NVIDIA standard terms and conditions of sale supplied at the time of order acknowledgment, unless otherwise agreed in an individual sales agreement signed by authorized representatives of NVIDIA and customer. NVIDIA hereby expressly objects to applying any customer general terms and conditions with regard to the purchase of the NVIDIA product referenced in this specification.

NVIDIA products are not designed, authorized or warranted to be suitable for use in medical, military, aircraft, space or life support equipment, nor in applications where failure or malfunction of the NVIDIA product can reasonably be expected to result in personal injury, death or property or environmental damage. NVIDIA accepts no liability for inclusion and/or use of NVIDIA products in such equipment or applications and therefore such inclusion and/or use is at customer’s own risk.

NVIDIA makes no representation or warranty that products based on these specifications will be suitable for any specified use without further testing or modification. Testing of all parameters of each product is not necessarily performed by NVIDIA. It is customer’s sole responsibility to ensure the product is suitable and fit for the application planned by customer and to do the necessary testing for the application in order to avoid a default of the application or the product. Weaknesses in customer’s product designs may affect the quality and reliability of the NVIDIA product and may result in additional or different conditions and/or requirements beyond those contained in this specification. NVIDIA does not accept any liability related to any default, damage, costs or problem which may be based on or attributable to: (i) the use of the NVIDIA product in any manner that is contrary to this specification, or (ii) customer product designs.

No license, either expressed or implied, is granted under any NVIDIA patent right, copyright, or other NVIDIA intellectual property right under this specification. Information published by NVIDIA regarding third-party products or services does not constitute a license from NVIDIA to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property rights of the third party, or a license from NVIDIA under the patents or other intellectual property rights of NVIDIA. Reproduction of information in this specification is permissible only if reproduction is approved by NVIDIA in writing, is reproduced without alteration,  and is accompanied by all associated conditions, limitations, and notices.

ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS, AND OTHER DOCUMENTS (TOGETHER AND SEPARATELY, “MATERIALS”) ARE BEING PROVIDED “AS IS.” NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY, OR OTHERWISE WITH RESPECT TO THE MATERIALS, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE. Notwithstanding any damages that customer might incur for any reason whatsoever, NVIDIA’s aggregate and cumulative liability towards customer for the products described herein shall be limited in accordance with the NVIDIA terms and conditions of sale for the product.

HDMI

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Dolby

For Products Containing Dolby Vision and Dolby Audio Dolby, Dolby Vision, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 1992-2015 Dolby Laboratories. All rights reserved.

ARM

ARM, AMBA and ARM Powered are registered trademarks of ARM Limited. Cortex, MPCore and Mali are trademarks of ARM Limited. All other brands or product names are the property of their respective holders. ʺARMʺ is used to represent ARM Holdings plc; its operating company ARM Limited; and the regional subsidiaries ARM Inc.; ARM KK; ARM Korea Limited.; ARM Taiwan Limited; ARM France SAS; ARM Consulting (Shanghai) Co. Ltd.; ARM Germany GmbH; ARM Embedded Technologies Pvt. Ltd.; ARM Norway, AS and ARM Sweden AB.

OpenCL

OpenCL is a trademark of Apple Inc. used under license to the Khronos Group Inc.

Trademarks

NVIDIA, the NVIDIA logo, GeForce, and SHIELD TV are trademarks and/or registered trademarks of NVIDIA Corporation in the U.S. and other countries. Other company and product names may be trademarks of the respective companies with which they are associated.

Google, Android, and Gmail are trademarks and/or registered trademarks of Google Inc.

The Bluetooth® word, mark, and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license.

Wi-Fi CERTIFIED and Wi-Fi CERTIFIED Miracast are registered marks of the Wi-Fi Alliance.

Steam is a trademark of Valve.

Other trademarks and trade names are those of their respective owners.

Copyright

© 2019 NVIDIA Corporation. All rights reserved.
