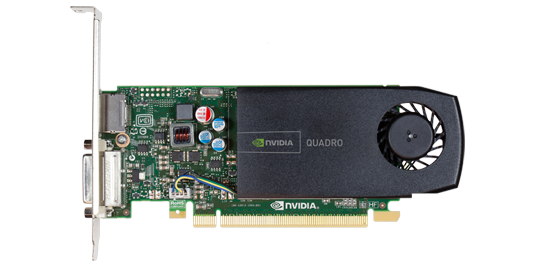

NVIDIA Quadro 410

NVIDIA® Quadro® 410 combines outstanding entry level CAD/PLM productivity and application certification at an exceptional value.

Checking for products...
Where To Buy

Overview

NVIDIA® Quadro® 410 is tested and certified to reliably accelerate all major design and CAD applications so you have assurance of productivity regardless of how complex your workflow gets. Take advantage of improved model interactivity or tackle more complex models with almost 90% CAD performance improvement over Quadro FX380LP1 and up to 30% gain over Quadro 4002. Professional features like new FXAA and TXAA full scene anti-aliasing provide crisper images without impacting model interactivity. All of this, with the 2 year lifecycle and 3 year warranty, means the Quadro 410 delivers unsurpassed dependability and robustness you've come to expect from NVIDIA Quadro products.

nView Advanced Desktop Software

nView Advanced Desktop Software

The NVIDIA® nView® Advanced Desktop Software delivers maximum flexibility for single large display or multi-display options, providing unprecedented end-user control of the desktop experience for increased productivity.

Certified on 100+ professional applications

The Quadro 410 is tested, certified, and guaranteed to reliably accelerate all major design and CAD applications – assurance of productivity regardless of how complex your workflow gets.

3 Year Warranty

With a 2 year lifecycle and 3 year warranty, the Quadro 410 delivers unsurpassed dependability and robustness.

3D Vision and 3D Vision Pro

3D Vision and 3D Vision Pro

Advanced active shutter glasses deliver crystal-clear stereoscopic 3D visualization for the most immersive experience. Infrared (NVIDA® 3D Vision™) or RF (3D Vision Pro) technology enables a range of immersive environments ranging from your desktop workstation to collaborative work spaces. 3D Vision and 3D Vision Pro sold separately.

1 - 88% improvement based on SPEC Viewperf 11 score on Quadro 410 of 17.8 (Xeon 3.3GHz w5590, 24GB RAM, Win7-64, 295.10 driver) compared to Quadro 380LP score of 37.7 (Xeon 3.3GHz w5590, 6GB RAM, Win7-64, 260.79).

2 - 30% improvement based on SPEC Viewperf 11 score on Quadro 410 of 17.8 (Xeon 3.3GHz w5590, 24GB RAM, Win7-64, 295.10 driver) compared to Quadro 400 score of 13.7 (Xeon 3.3GHz w5590, 24GB RAM, Win7-64, 295.10). SPEC® and the benchmark name SPECviewperf® are registered trademarks of the Standard Performance Evaluation Corporation. Competitive benchmark results stated above reflect results published on www.spec.org as of 12/8/2010. For the latest SPECviewperf® benchmark results, visit www.spec.org/gwpg.

Features

GPU Features

NVIDIA® CUDA® architecture

Parallel-computing architecture that tightly integrates advanced visualization and compute features to significantly accelerate professional workflows.

NVIDIA® Scalable Geometry Engine

Dramatically improves geometry performance across a broad range of CAD, DCC, and medical applications. This enables you to work interactively with models and scenes that are an order of magnitude more complex than ever before.

Fast 3D Texture Transfer

Allows fast transfer and manipulation of 3D textures, resulting in more interactive visualization of large volumetric datasets.

Unified Driver Architecture (UDA)

The NVIDIA UDA guarantees forward and backward compatibility with software drivers. Simplifies upgrading to a new solution because all Quadro products work with the same driver software.

Hardware 3D Window Clipping

Hardware accelerated clip regions enable faster data transfer between a window and the frame buffer to improve overall graphics performance.

NVIDIA® Parallel DataCache™

Supports a true cache hierarchy combined with on-chip shared memory. L1 and L2 caches drive exceptional throughput, accelerating features such as real-time ray tracing, physics, and texture filtering.

NVIDIA® GigaThread™ Engine

Provides up to 10x faster context switching compared to previous-generation architectures, concurrent kernel execution, and improved thread block scheduling.

Ultra-Quiet Design

Enables acoustics lower than 28db for an ultra-quiet desktop environment.

Display Features

Full-Scene Antialiasing (FSAA)

16X FSAA reduces visual aliasing artifacts or "jaggies," resulting in unparalled image quality and highly realistic scenes.

FXAA and TXAA

Unlike traditional anti-aliasing techniques, FXAA and TXAA deliver exceptional anti-aliasing image quality without the degredation in performance.

GPU Tessellation with Shader Model 5.0

Quadro Tessellation Engines automatically generate finely detailed geometry, for cinematic quality environments and scenes, without sacrificing performance.

16K Texture and Render Processing

Provides the ability to texture from and render to 16K x 16K surfaces. Beneficial for applications that demand the highest resolution and quality image processing.

NVIDIA High-Precision High Dynamic Range (HDR) Technology

Sets new standards for image clarity and quality through floating-point capabilities in shading, filtering, texturing, and blending. Enables unprecedented rendered image quality for visual-effects processing.

Display Port 1.2 Support (with audio)

Compact and secure DisplayPort 1.2 connectors support Multi-Stream Technology, Stream Cloning and ultra-high-resolution panels (up to 3840 x 2400) – enabling maximum range, resolution, refresh rate, and color depth designed to support the latest display technologies.

High-Quality Display Connectivity

Drives ultra-high-resolution panels, producing phenomenal image quality. Support two active connectors including, dual-link DVI with up to 3840 x 2400 @ 24Hz on each panel, DisplayPort 1.2 with up to 3840 x 2400, or HDMI for integrated audio and video thru the GPU.

30-Bit Color Fidelity

30-bit color fidelity (10-bits per color) enables billions of color variations for rich, vivid image quality with the broadest dynamic range.

3D Vision and 3D Vision Pro

Advanced active shutter glasses deliver crystal-clear stereoscopic 3D visualization for the most immersive experience. Infrared (3D Vision) or RF (3D Vision Pro) technology enables a range of immersive environments ranging from your desktop workstation to collaborative work spaces. 3D Vision and 3D Vision Pro sold separately.

OpenGL Quad Buffered Stereo Support

OpenGL Quad Buffered Stereo offers professional applications the capability of smooth and immersive 3D Stereo experience.

Software Support

CUDA Parallel Computing Architecture

NVIDIA Quadro solutions leverage general purpose GPU computing using standard programming languages like C/C++ and Fortran, and emerging APIs such as OpenCL and Direct Compute. This broad adoption of CUDA is accelerating techniques like ray tracing, video and image processing, and computation fluid dynamics.

Cg Programming

Programmable GPU leverages Cg high-level, open-standard shading language to enable the creation and integration of real-time photorealistic effects into 3D models, scenes and designs.

Microsoft Windows Server 2008 R2 Support

Leverages compelling new features included with Windows 2008 R2, delivering unprecedented application performance, advanced visual realism, and premium reliability with superior application compatibility on servers.

Shader Model 5.0 Programmability

Infinite-length vertex programs and dynamic flow control remove the previous limits on OpenGL and DirectX shader programs, delivering sophisticated effects never before imagined.

Microsoft Windows 7 Support

Take advantage of all the new and compelling features included with Windows 7, delivering unprecedented application performance, advanced visual realism, and premium reliability with superior application compatibility on mobile and desktop workstations.

NVIDIA Graphics API Extensions

NVIDIA provides a set of extensions to standard graphics APIs for Linux and Windows, enabling applications to take maximum advantage of state-of-the-art GPU capabilities.

NVIDIA® Application Acceleration Engines Support

Supercharge application performance and capabilities with highly optimized software modules, including SceniX and OptiX for advanced creative and investigative possibilities.

NVIDIA Mosaic Technology

NVIDIA® Mosaic Technology enables transparent scaling of any application across up to eight displays, using multiple graphics solutions.

nView® Advanced Desktop Software

The nView® Advanced Desktop Software delivers maximum flexibility for single large display or multi-display options, providing unprecedented end-user control of the desktop experience for increased productivity.

NVIDIA Enterprise Management Tools

Exhaustive Enterprise Management tools for maximizing your system uptime by enabling seamless wide scale deployment. Allow remote query and control of graphics and display settings for systems spread across your installations.

Industry Standards

Compatible with Industry Standard Architectures

Compatible with Microsoft and Linux operating systems, and Intel and AMD x86 32- and 64-bit microprocessor architectures.

PCI Express 2.0 Compliance

Supports data transfer rates up to 5 GT/sec per lane for an aggregate bandwidth of 16 GB/sec bi-directional (8 GB/sec in each direction).

Specifications

Quadro 410

GPU Specs

CUDA Cores

192

Form Factor

2.731" H x 6.93" L Single Slot, Low Profile

GPU Memory Specs

Total Frame Buffer

512 MB DDR3

Memory Interface

64-bit

Memory Bandwidth (GB/sec)

14 GB/s

Display Support

Dual Link DVI-I

1

DisplayPort

1

Maximum Display Resolution Digital @ 60Hz

3840x2160

3D Vision/3D Vision Pro

Feature Support

Shader Model

5.0

OpenGL

4.3

Microsoft DirectX

11

NVIDIA CUDA Architecture

Mosaic Technology¹

NVIEW Display Management Software

FSAA (maximum)

16x

FXAA and TXAA

Thermal and Power Specs

EnergyStar Enabling

Yes

Maximum Power Consumption

38 W

Relative Performance Score

16.65
