NVIDIA® NVS
The Standard for Multi-Display Graphics

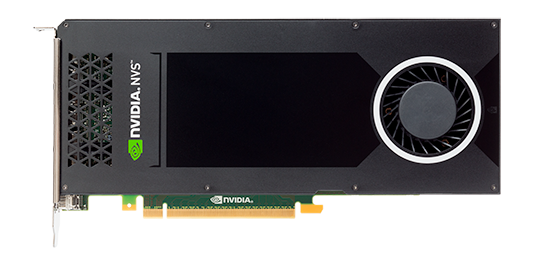

NVS 810

NVS 810



This is the world's most capable digital signage card with lowest TCO, letting you seamlessly drive 8 displays from a single card or combine cards together to form massive signage walls. Discover superior advanced image management using technologies such as NVIDIA® Mosaic and NVIDIA Warp & Blend.

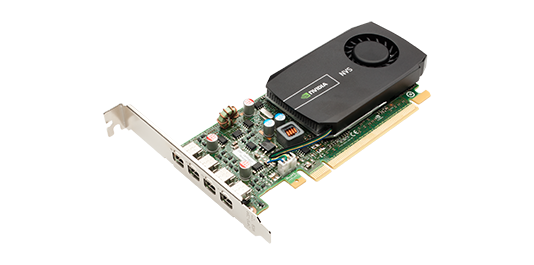

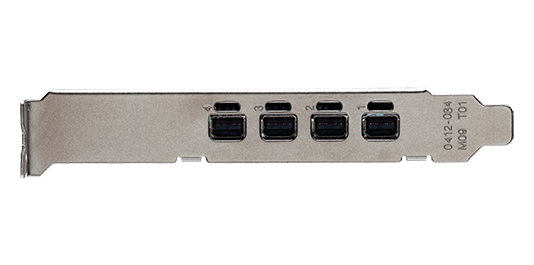

NVS 510

NVS 510



Power efficient performance with ultra-fast 2 GB on board memory to reliably drive up to 4 displays across varied business environments. NVS 510 also supports advanced DP 1.2 features and 4K resolutions.

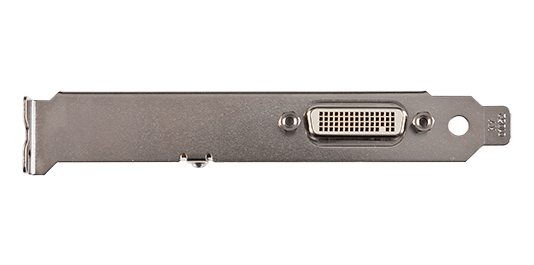

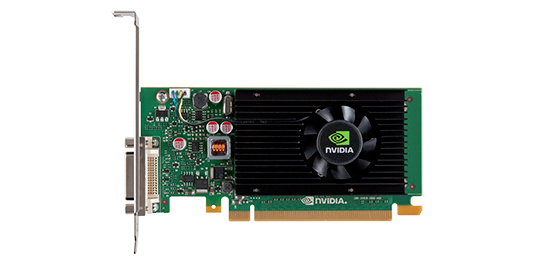

NVS 315

NVS 315



Flexible & Energy efficient low profile solution with 1024 MB on board memory, providing display connectivity to drive any type of dual-display.

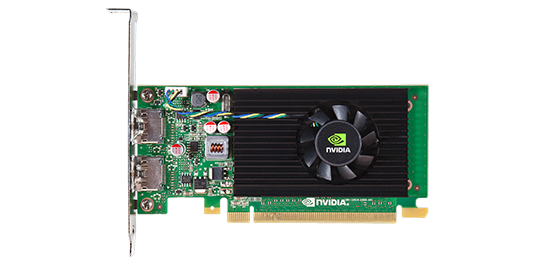

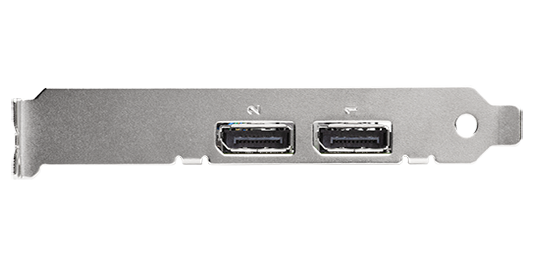

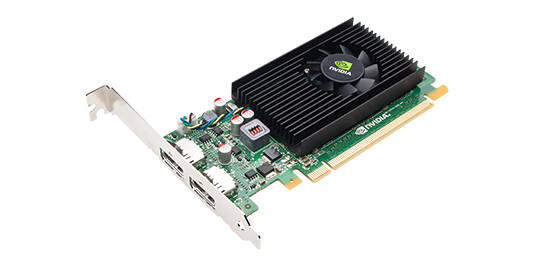

NVS 310

NVS 310



Energy efficient low profile solution with 512 MB/1 GB on board memory to seamlessly drive up to 2 displays.







NVS 810 QUICK SPECS
NVIDIA CUDA® Parallel-Processing Cores 1024 (512 cores per GPU)
Frame Buffer Memory 4 GB DDR3 (2GB per GPU)
Max Power Consumption 68W
Graphics Bus PCI Express 3.0 x16
Display Connectors Mini DP 1.2 (8)
Form Factor 4.4 in × 7.8 in




NVS 510 QUICK SPECS
NVIDIA CUDA® Parallel-Processing Cores 192
Frame Buffer Memory 2.0 GB DDR3
Max Power Consumption 35W
Graphics Bus PCI Express 2.0 x16
Display Connectors Mini DP 1.2(4)
Form Factor 2.7 in × 6.3 in




NVS 315 QUICK SPECS
NVIDIA CUDA® Parallel-Processing Cores 48
Frame Buffer Memory 1024MB DDR3
Max Power Consumption 19.5 W
Graphics Bus PCI Express 2.0 x16
Display Connectors DMS-59
Form Factor 2.7 in × 5.7 in




NVS 310 QUICK SPECS
NVIDIA CUDA® Parallel-Processing Cores 48
Frame Buffer Memory 512MB/1 GB DDR3
Max Power Consumption 19.5 W
Graphics Bus PCI Express 2.0 x16
Display Connectors DP 1.2 (2)
Form Factor 2.7in x 5.7in
