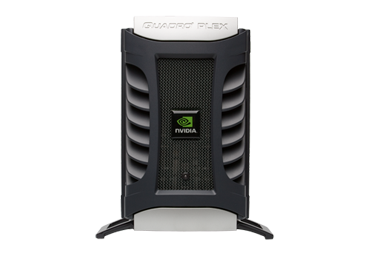

Quadro Plex 2100 D4

Unleash Your Visual Computing Possibilities Combine high-performance graphics and high-performance computation for interactive analysis of complex, multivariate data. Deploy the visual supercomputer at your deskside or 3U rackmount form factor fits any standard 19” rack environment*.

Maximize Image Quality, Resolution, and Display Size Quadro Plex 2100 D4 features best-of-class display solutions. The Quadro® G-Sync solution enables frame synchronization, genlock, and frame lock for further scaling of performance, quality, and resolution. Coupled with NVIDIA® SLI® multi-GPU technology, the professional users can dynamically scale graphics performance, get enhance image quality, and expand their display real estate.

Industry-Standard Architectures Built on proven Quadro GPUs and unified driver architecture, Quadro Plex 2100 D4 provides the flexibility to be deployed with any certified PCI Express® x16 platform with Gen 2 support, and is certified on the industry’s leading professional applications.

*Rackmount option kit including mounting rails and hardware sold separately

• 8K Texture and Render Processing
  The ability to texture from and render to 8K x 8K surfaces for applications that demand the highest resolution and quality image processing.
• 12-Bit Subpixel Precision
  12-bit sub-pixel precision delivers high geometric accuracy, eliminating spreckles, cracks, and other rasterization anomalies.
• 128-Bit Precision Graphics Pipeline
  Enables sophisticated mathematical computations to maintain high accuracy, resulting in unmatched visual quality. Full IEEE 32-bit floating-point precision per color component (RGBA) delivers millions of color variations with the broadest dynamic range.
• 32-Bit Floating Point Precision
  Sets new standards for image clarity and quality through 32-bit floating point capabilities in shading, filtering, texturing, and blending. Enables unprecedented rendered image quality for visual effects processing.
• 32-Bit Filtering and Blending
  Enables unprecedented rendered image quality for visual effects processing.
• 1 GB Frame Buffer per GPU
  Delivers high throughput for interactive visualization of large models and high-performance for real time processing of large textures and frames and enables the highest quality and resolution full-scene antialiasing (FSAA).
• Advanced Color Compression, Early Z-Cull
  Improved pipeline color compression and early z-culling to increase effective bandwidth and improve rendering efficiency and performance.
• Breakthrough Visual Compute Density
  Unmatched graphics compute per cubic centimeter provides highest visual compute density enabling breakthrough levels of capability and productivity.
• Cg High-Level Graphics Shader Language
  Cg—“C” for graphics—is a high-level, open-standard programming language for OpenGL that takes advantage of the power of programmable GPUs. NVIDIA Quadro® FX programmable graphics pipelines leverage high-level shading languages to enable the creation and integration of real-time photorealistic effects into 3D models, scenes, and designs. This represents a major leap forward in ease and speed for the creation of real-time, realistic graphics within MCAD, DCC, and scientific applications.
• Dedicated Visual Computing System
  Enables NVIDIA® SLI™ multi-GPU capability on any NVIDIA Quadro Plex certified PCI Express platform.
• Fast 3D Textures
  Fast transfer and manipulation of 3D textures resulting in more interactive visualization of large volumetric dataset.
• Flexible Form Factor
  Workstation, deskside tower or standard 19" rack form factor enables deployment in a wide range of environments.
• Frame Synchronization
  Allows the display channels from multiple workstations to be synchronized, thus creating one large "virtual display" that can be driven by a multisystem cluster for performance scalability.
• Full-Scene Antialiasing (FSAA)
  Up to 128× SLI FSAA on Model D4, this dramatically reduces visual aliasing artifacts or “jaggies, “resulting in highly realistic scenes.
• Genlock/Frame Lock
  Also known as "house sync." Genlock allows the graphics output to synchronized to an external source, typically for film and broadcast video applications.
• NVIDIA® CUDA™ Parallel Computing Processor
  A parallel computing processor architecture exposed through a C language environment and tool suite in combination with high performance visualization, CUDA unleashes new capabilities to solve highly complex challenges such as real-time ray tracing, video encoding, and interactive volume rendering.
• Hardware 3D Window Clipping
  Hardware accelerated clip regions (data transfer mechanism between a window and the frame buffer) which improve overall graphics performance by increasing transfer speed between color buffer and frame buffer.
• Highest Color Fidelity
  10-bit per component color fidelity enables billions rather than millions of color variations for rich, vivid image quality with the broadest dynamic range.
• Next-Generation Vertex and Pixel Programmability
  The NVIDIA Quadro FX GPUs introduce infinite length vertex programs and dynamic flow control, removing the previous limits on complexity, and structure of shader programs. With full support for Vertex/Shader Model 4.0, Quadro FX GPUs deliver sophisticated effects never before imagined for real-time graphics systems.
• NVIDIA High Precision / High Dynamic Range (HDR) Technology
  Sets new standards for image clarity and quality through floating point capabilities in shading, filtering, texturing, and blending. Enables unprecedented rendered image quality for visual effects processing.
• NVIDIA Unified Architecture
  Industry’s first unified architecture designed to dynamically allocate compute, geometry, shading and pixel processing power to deliver optimized GPU performance.
• PCI Express 2.0 Compliant
  Doubles the data transfer rate up to 5 GT/sec per lane for an aggregate bandwidth of 16 GB/sec bi-directional (8 GB/sec in each direction).
• Quad Buffered Stereo
  Offers enhanced visual experience for professional applications that demand stereo viewing capability.
• Rotated-Grid Full-Scene Antialiasing (RG FSAA)
  The rotated grid FSAA sampling algorithm introduces far greater sophistication in the sampling pattern, significantly increasing color accuracy and visual quality for edges and lines, reducing “jaggies” while maintaining performance.
• NVIDIA SLI Technology
  NVIDIA® SLI™ technology enables intelligent and transparent scaling of professional application performance.
• NVIDIA SLI Mosaic Mode
  Enables transparent use of multi GPUs on multiple displays to simplify 4K projection systems.
• 8 Dual-Link Digital Display Connectors
  Full dual-link TMDS transmitters support ultra-high-resolution panels (up to 3840 x 2400 @ 24Hz on each panel) --which result in amazing image quality producing detailed photorealistic images.
• Ultra Quiet Design
  Acoustics lower than most workstations at sub 40 dB for a quiet desktop environment.
