Announcing NVIDIA Maximus Workstations with the new NVIDIA® Maximus™ technology – that combine Quadro and Tesla GPUs - provides CATIA users with even greater graphics and computational performance than ever before. Engineers and designers in industries ranging from automotive and aerospace to consumer packaged goods can get incredibly fast and surprisingly cost efficient ways to perform simultaneous CAE simulations or photorealistic rendering while still working on their designs. As always, the collaboration of NVIDIA, Dassault Systemes and the leading workstation manufacturers, assures you of optimized performance and the most advanced features. For more information, visit our Maximus workstation page. INCREASE CATIA PERFORMANCE Featuring a new geometry engine and up to 6GB of graphics memory, NVIDIA Quadro shatters previous limitations. With up to 85% performance gains* over previous generations, the new Quadro solutions allow you to use advanced textures and materials on large assemblies without slowing down the design process. Stylists can now use realistic materials like car paint, carbon fiber and leather stitching to render life-like models. Electrical and hydraulics engineering teams can navigate complete airplane or car assemblies to make correct technical decisions faster. Go ahead and rotate, pan, zoom and modify without worry. Quadro gives you the power you need. Which Quadro Solution is Right for me?   Quadro 2000 Quadro 4000 Quadro 5000 Quadro 6000 Usage Modeling. Part & Simple Assembly Design. Intensive Modeling. Complex Design in Context & system assembly. Creative Designers. High-end Modeling. Simultaneous use of multiple applications. Visualization or Styling Experts. Multiple CATIA motion simulations in complex assemblies. Replaces 35% performance improvement over FX 1800 53% performance improvement over FX 3800 76% performance improvement over FX 4800 85% performance improvement over FX 5800 Benefit All around performance for spinning, panning and zooming Deal with large amount of data View function, motion of an assembly Use complex material and surfaces for better design fidelity Accelerate photorealistic image production CUDA Cores 192 256 352 448 Frame Buffer Memory 1 GB GDDR5 2 GB GDDR5 2.5 GB GDDR5 6 GB¹ GDDR5 Memory Interface 128-bit 256-bit 320-bit 384-bit Memory Bandwidth 41.6 GB/s 89.6 GB/s 120 GB/s 144 GB/s Max Power 62 W 142 W 152 W 225 W Graphics Bus PCI Express 2.0 x16 PCI Express 2.0 x16 PCI Express 2.0 x16 PCI Express 2.0 x16 Display Connectors² 2 DisplayPort 1 Dual Link DVI-I 2 DisplayPort 1 Dual Link DVI-I 1 Stereo 3D (optional) 2 DisplayPort 1 Dual Link DVI-I 1 Stereo 3D 2 DisplayPort 1 Dual Link DVI-I 1 Stereo 3D THE PROVEN SOLUTION FOR CATIA NVIDIA professional graphics solutions are certified and recommended by Dassault Systemes and come with a three year warranty. The close collaboration during product development guarantees stability and reliability of the platform, so everything will perform just the way you expect from day one. It's no wonder that 9 out 10 CATIA certified platforms today are based on Quadro.

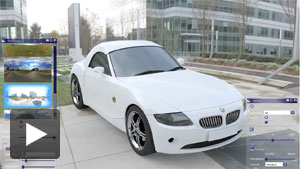

Check out the photorealistic quality in CATIA V6 2011X CERTIFIED AND RECOMMENED GPUs Quadro 6000 > 6 GB¹ > 448 CUDA Cores Quadro 5000 > 2.5 GB > 352 CUDA Cores Quadro 4000 > 2 GB > 256 CUDA Cores Quadro 2000 > 1 GB > 192 CUDA Cores For more information contact a sales representative > To get the latest CATIA Performance    drivers for Quadro, click here. > To view Dassault certified hardware click    here. > CATIA Live Rendering Optimization Guide (PDF) CATIA Live Rendering Optimization Guide With complex add-on programs and long wait times it used to be that photorealistic rendering was reserved just for styling and marketing. No longer. Realistic models are a necessity for designers and engineers for more accurate and faster decisions throughout the process. Learn More.

¹ 6GB is supported on Win7 and Linux64 (4GB memory limit on Windows XP64) via Rel 256 driver.
² Two out of any three connectors can be active at a time

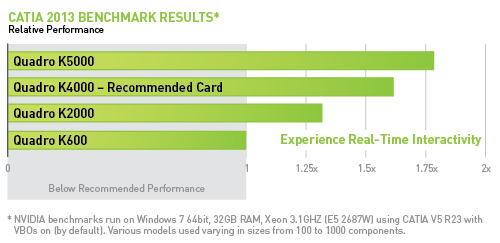

* SPEC® and the benchmark name SPECviewperf® are registered trademarks of the Standard Performance Evaluation Corporation. Competitive benchmark results stated above is based on standard industry workstations representative of when each particular graphics product was launched. Resolution of 1900 x 1200, Windows Win 7, 64 Bit, System 1P XEON 3.3GHz, 6GB Memory, Rel265 Quadro driver. For the latest SPECviewperf benchmark results, visit www.spec.org/gwpg.
